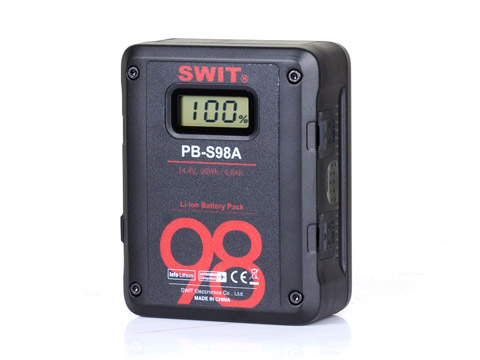

Swit PB-S98A 98Wh Multi-sockets Heavy Duty Digital Battery

Square shape design for Cine-cameras PB-S series camera batteries are compact designed, shorter than normal Gold-mount batteries, and match perfectly with most of the Cine-cameras. 98Wh / 6.8Ah Capacity Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. Can run approx 3 hours for normal ENG cameras. Multiple output sockets design 2× D-tap output sockets, 1× USB 5V/2A power output socket PB-S98A is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 8A, 100W. PB-S98A is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices. Digital Power Info LCD display accurate remaining run time The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras. LCD alarm code description ①P01～P13: The battery trigger protection function and it can be recovered; ② When the battery rests over 10 days or runs out of power,it will enter sleep mode and the LCD will not display. ③ E01～E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery. Common battery protection code: P01 Run out of power, please charge the battery asap. P02 Over-voltage when charging, please remove the battery, discharge the battery to decrease the battery voltage to restore. P03 Over-current when charging, please remove the battery, and it will restore after 30 seconds’ standing. P05～P07 The load is too heavy, please remove the battery, and it will restore after 30 seconds’ standing. P08～P09 Battery short circuit, please make sure that there is no foreign body between the electrodes or remove the battery, and it will restore after 30 seconds’ standing. P10～P13 Temperature protection, please remove the battery and place at room temperature to recover
