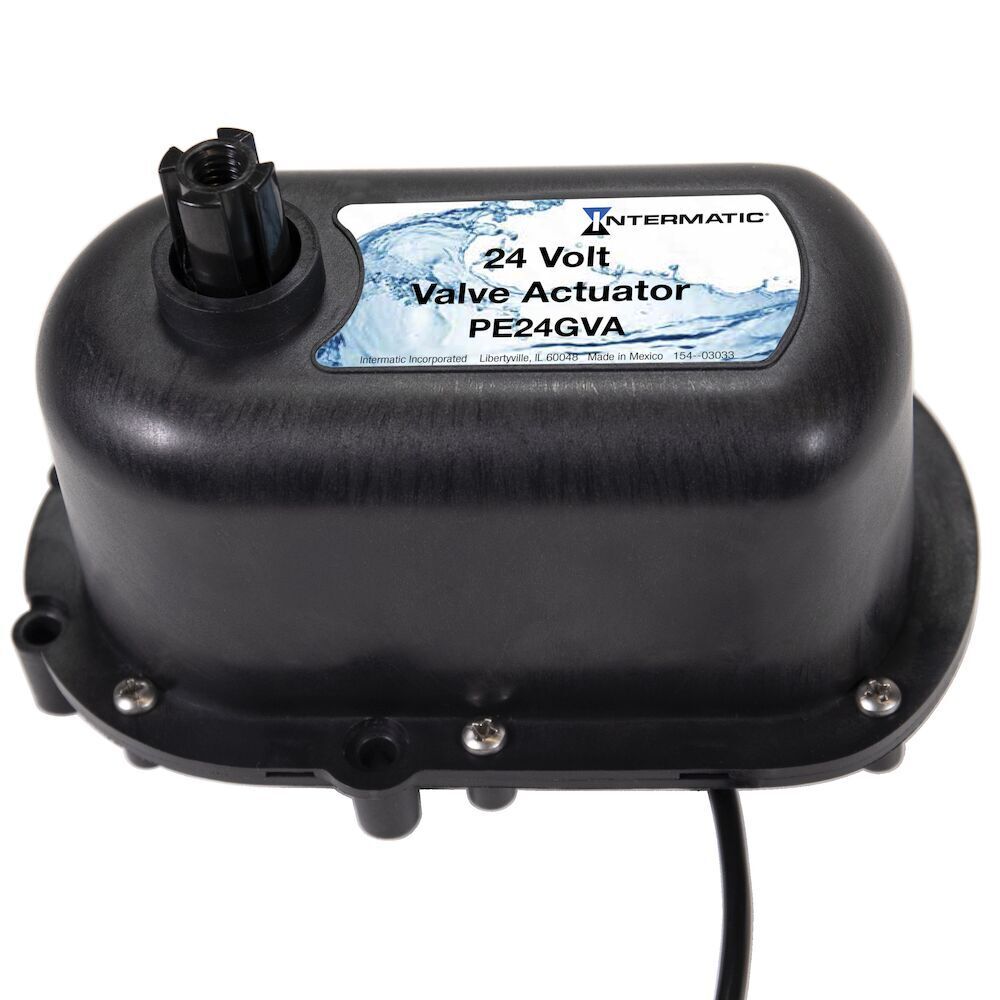

Intermatic PE24GVA – 24v Valve Actuator

Description ��️ Key Features Voltage & Power: Operates on 24V AC, 60 Hz, drawing 0.75 A during normal operation. Duty Cycle: 1 minute ON (max), 8 minutes OFF (min) — suitable for intermittent valve adjustments. Connection: 3-wire setup compatible with standard pool/spa automation systems. Compatibility: Fits standard 2-way and 3-way 1.5″ and 2″ valves from brands like Waterway, CMP, and Jandy. Rotation Control: Fully adjustable rotation angles using toolless cam settings for precise water flow control. �� Installation Highlights Mounts directly onto diverter valves using four stainless steel screws. Includes a hold-down knob to secure the actuator shaft — finger-tighten only. Designed for easy cam adjustment to set clockwise and counter-clockwise stopping points without tools. �� Applications Ideal for automating water flow to: Spa heating systems Waterfalls and fountains Pool/spa mode switching Other water features requiring directional control
