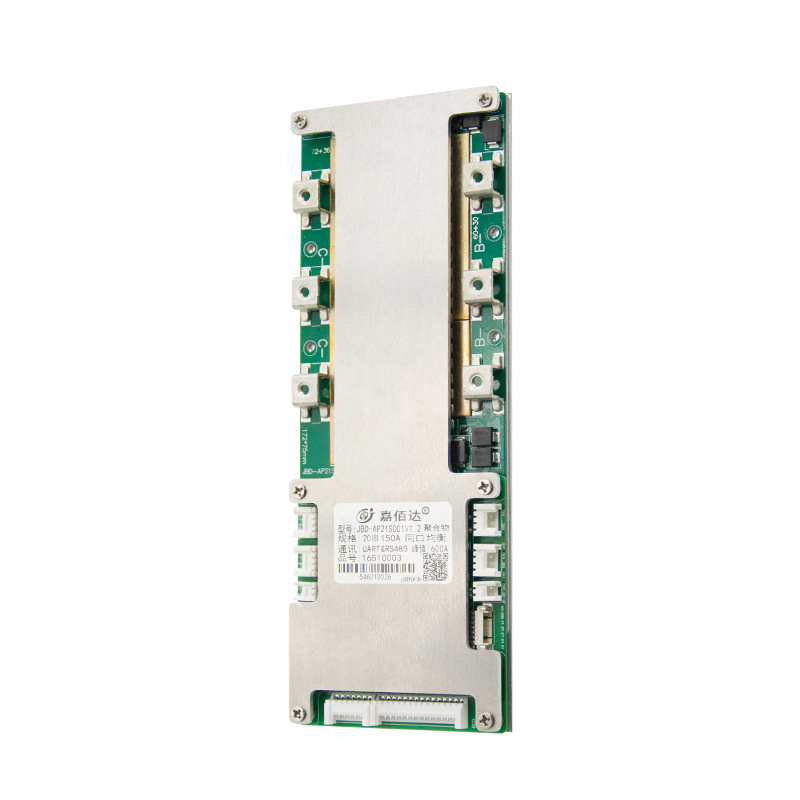

LiFePO4 Smart BMS Automized Identify 6S~21S 100A~200A Same Port Balance Bluetooth With Heating

Features Intelligent control: LifePO4 Smart BMS can monitor and feed back battery capacity, voltage, temperature and battery parameters in real time Security: LifePO4 Smart BMS can actively balance the voltage and other states between single batteries to avoid overcharging and excessive heating of the battery. Applications LifePO4 Smart BMS is mainly used in LI-ion power batteries and energy storage lithium batteries. Widely used in electric scooters, e-bikes, tourist sightseeing hide, electric tricycles, low-speed EV, emergency UPS, solar street lights, RV& Home energy storage, etc. Wire connection mode 1. First connect the B- wire to the total negative pole of the battery, and then connect the cable 2. Start wiring from BCO, BC0 is connected to the total negative electrode of the battery, the second cable BC1 is connected to the positive electrode of the first series of batteries, the third cable BC2 is connected to the positive electrode of the second series of batteries, and so on. 3. After connecting the cables, measure the voltage between each two adjacent cables. The voltage of the iron-lithium battery should be less than 3.5V. After checking, insert the cable.
