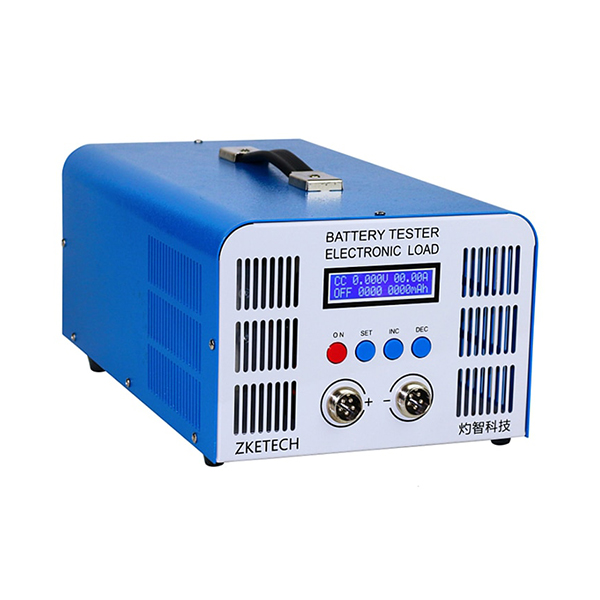

EBC-A40L Large Current Lithium Battery Capacity Tester Zketech

Item Performance Model Zketech EBC-A40L Voltage Range Charge: 0~5V Discharge: 0~5V Voltage Accuracy 0.2% ± 0.003V Current Range Charge: 0.1~40A Discharge: 0.1~40A Current Accuracy 0.2% ±0.01A Discharge Mode CC constant current discharge / CP Constant power Discharge Termination Time/ Voltage below limit/ Manual Capacity Test Within 10Ah, the resolution is 0.001 Ah 10Ah-100Ah, resolution 0.01Ah Above 100Ah, resolution 0.1Ah Discharge Power Maximum 200W Charge Mode CV constant current and voltage charging Charge Termination Constant current below limit/ Manual Cooling Method Active fan heating Power Supply AC 200-240V Testing Interface 1. The first line shows mode (CC-constant current), voltage, and current. 2. The second line shows the working process, working time (in minutes), and capacity (automatic switch between 0000mAh and 00.00Ah). 3. Working process reads OFF when the test stops and DSC or CHG in testing. 4. It shows AT1 if you choose automatic charging/discharging and 1 means step 1 of current testing. 5. A short press on the “SET” button and the display changes to power and energy. 6. In an auto test of “charge-discharge-charge”, you can check the test results of each step by spinning the “SET” knob. 7. Press the “ON” button to start discharging test (shows DSC) and one more press to stop (shows OFF). 8. You can open the setting interface by pressing on the “SET” button for 2 seconds in the stop state (This function is invalid when the tester is connected with the PC software). Package List 1 * Tester 1 * Online Line 1 * Test Line 1 * Power Code   Product Application The ZKETECH EBC-A40L Capacity Tester is suitable for various scenarios that require capacity testing and performance evaluation of batteries, including battery production, battery maintenance, and battery recycling. Note: 1. The voltage of the test element (battery, etc.) cannot exceed 5V. If it exceeds 5V, the circuit board will be burned out and irreversible. 2. Positive and negative connections should not be reversed. 3. Always use the tester within the allowed range.
