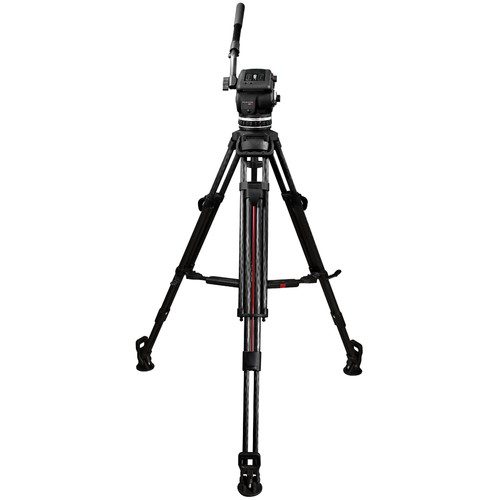

Cartoni Focus 18 Tripod System with 2-Stage Aluminum Legs, Mid-Level Spreader, and Bag SDS18AXM

Featuring the 100mm Focus 18 fluid head, this Cartoni Focus 18 Tripod System with 2-Stage Aluminum Legs, Mid-Level Spreader, and Bag is a kit intended for users who shoot with a camera and accessory payload weighing between 13.2 to 40 pounds. Despite its load capacity, the system is lightweight and torsionally stable. The Focus 18 head provides smooth tilting along its entire 90/-70° range and features continuous counterbalance adjustment. The kit also includes the L506 2-stage aluminum tripod legs, which feature 31 to 64″ height adjustment and SmartStop leg locks. The 100mm half ball head fitting creates a large support platform for stable pans and tilts. The included mid-level spreader enables setting up your tripod on uneven terrain or stairs. The tripod features spiked feet that allow for excellent grip on soft surfaces such as dirt or sand, while the included rubber feet protect delicate surfaces and provide grip on hard or slick surfaces. Cartoni Focus 18 Fluid Head (100mm) The Cartoni Focus 18 Fluid Head features a 100mm ball base and supports loads between 13.2 to 40 lb, with perfect balance along its entire /-90° tilt range. The Focus 18 is one of four video heads in a lineup released as a follow-up to the Cartoni Focus HD head. The complete lineup is an evolution of the original Focus head released in 2005, and a definitive rebranding of 10 years of contribution to the entry- and mid-level user category. Like the others in the lineup, the Focus 18 consists of 127 parts, incorporates a universal plate system, and uses a new composite material in many parts that allows for a solid build while keeping the weight down. Like the rest, it also comes with the peace-of-mind of a 5-year warranty and, of course, features Cartoni’s renowned counterbalance and very smooth, “true” fluid drag. The Focus 18 uses the same patented Delta silicon wedge counterbalance system used in Cartoni’s successful Delta head, and features continuous counterbalance adjustment. Also, true to the Cartoni name, the entire head is designed, manufactured, and hand-assembled at the Cartoni factory in Rome, Italy. The 127 parts are machined or cast to micrometric precision and assembled and adjusted to precision by one engineer at a time. The Focus 18 integrates the Sachtler Touch-and-Go 16 plate system, which is found on Sachtler’s FSB and Video series heads. This advantage will allow you the flexibility to efficiently move your camera between compatible heads in a studio setting, and will also future-proof your head for possible such uses in the future. The new composite material that’s used is a sophisticated non-metal that’s much stronger than aluminum and yet lighter. It is used in the tilt fluid knobs, pan fluid gears, and other parts throughout the body. This composite is also highly resistant to the stress of weight, bending, rubbing, and extreme temperatures, so where it’s used in the mechanisms of the head it actually provides for more stress-endurance in addition to saving weight. This composite is the result of a collaboration between Cartoni and the Department of Physics and Engineering at Sapienza University of Rome. The Focus 18 features a Cartoni-patented labyrinth modular fluid drag system, which consists of individual pan and tilt modules. Each module contains two main sections that have thin concentric rings inside them. The rings in one section interact with the rings in the other with aerospace industry silicon paste fluid between them that provides resistance. The two sections are never fully disengaged from one another, so movement is always smooth and with no play. With there being separate pan and tilt modules, pan drag and tilt drag are accordingly independent, but they work together to allow smooth, uninterrupted motion in any direction. Cartoni performs a laser-assisted, diagonal movement test on every head to ensure that there isn’t even the slightest digression from a straight-line movement. The pan drag control is a large ring in the center of the head that’s easy to use even without looking. This and all other controls are designed with ergonomic grips that will feel more secure between your fingers. There’s also an illuminated bubble-level that will be very helpful in dark settings. And a pan bar is included that can be attached to a rosette adapter on either side of the head. Additional pan bars are available sold separately. Key Features 100mm ball base Supports loads between 13.2 to 40 lb Perfect balance along entire /-90° tilt range Sachtler Touch-and-Go 16 Euro-style plate system Incorporates a sophisticated lightweight, extremely hard, and highly stress-resistant new composite material Labyrinth modular “true” fluid drag system Independent pan and tilt drag, with no play Continuous counterbalance and drag 127 parts, designed, manufactured, and hand-assembled at the Cartoni factory in Italy 5-year warranty Large pan drag ring in the center Ergonomic grips on all controls Illuminated bubble-level Includes a pan bar attachable on either side UPC: 260725670531 Cartoni L506 100mm Bowl 2-Stage Aluminum Tripod Legs with SmartStop The Cartoni L506 is a two stage aluminum tripod featuring SmartStop technology. Each leg assures excellent torsional rigidity and no play thanks to the reliable self-adjusting pivot to the 100mm diameter-leveling base. This support offers 16/20mm diameter tubes with a double tube extension on the terminal stage, providing excellent stability and a wider range of height adjustment. Construction This tripod features an aluminum alloy construction, double extension design and a 100mm bowl base. Height and Weight A maximum height of 57.4″ with support limitations of 132 lb are offered on this support. SmartStop SmartStop features an innovative clamping system which allows instant release on both stages with one single lever per leg conveniently located on the upper part of the tripod for fast & secure use Cartoni Mid-Level SDS Smart Spreader This Cartoni Mid-Level SDS Smart Spreader fits into Cartoni’s SDS tripod legs. The spreader extends by pressing a button to unlock the arms, and collapses just by squeezing the legs closed. The spreader features a bind-free ratcheting mechanism, and it folds neatly within the legs of your tripod. Owing to its dual extendable sections, the spreader allows you to spread your tripod’s legs extremely wide while remaining stable, for lower shots than would be possible with a traditional mid-level spreader. UPC: 810054630456 Cartoni Hooking Rubber Tripod Feet (Set of 3) These Cartoni Hooking Rubber Tripod Feet (Set of 3) can be pulled onto most Cartoni tripod models (except for Ultra-Light models) to provide non-slip contact with smooth surfaces. Each foot features a rubber strap (the “hook”) that secures it in place on a corresponding nub on the tripod leg.
