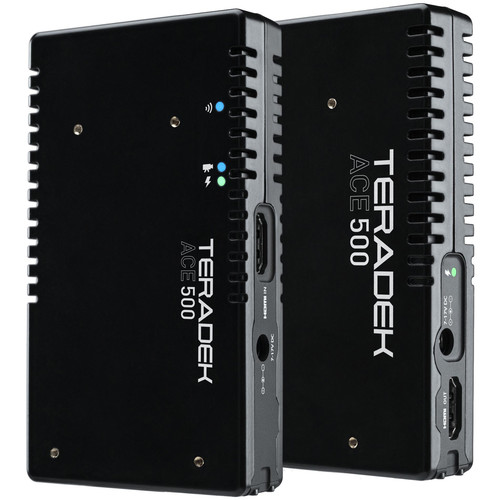

Teradek Ace 500 HDMI Wireless Video Transmitter and Receiver Set 10-1805

with the Teradek Ace 500 HDMI Wireless Video Transmitter and Receiver Set, you’ll transmit and receive visually lossless, uncompressed 1080p60 signals with <1 ms latency and AES-128 encryption at up to a 500′ line of sight. The Ace 500 transmitter and receiver are also compatible with existing Bolt systems such as the Bolt 500, XT, and LT, as well as SmallHD monitors with integrated Bolt wireless technology. The transmitter can send a signal simultaneously to up to four receivers. The Ace 500 units feature HDMI type A connectors, and standard HDMI cables are included to get connected right away. Power to the receiver is provided using the included power adapter with a 2.1mm jack, and a D-Tap to 2.1mm DC barrel connector is included with the transmitter to use with a separately available power source. Sony L-Series, BP-U, BP-9, or Canon LP-E6 battery mounts can also be purchased for both units. The units can be secured to a mount or stand via built-in 1/4″-20 or 4-40 holes. Teradek Ace 500 HDMI Wireless Video Transmitter With the Teradek Ace 500 HDMI Wireless Video Transmitter you’ll transmit visually lossless, uncompressed 1080p60 signals to one or more Ace 500 receivers with <1 ms latency up to a 500′ line of sight. The Ace 500 is compatible with existing Bolt systems such as the Bolt 500, XT, and LT, as well as SmallHD monitors with integrated Bolt receivers. The Ace 500 features an HDMI type A input, and a standard HDMI cable is included so you can plug in right out of the box. Power is provided using the included 2.1mm DC barrel to D-Tap power cable for use with a separately available battery or DC power source with 2.1mm barrel, or a separately available Sony L-Series, BP-U, BP-9, or Canon LP-E6 battery mount can be purchased. The transmitter unit can be secured to a mount or stand via built-in 1/4″-20 or 4-40 holes. The transmitter can send the video signal simultaneously to up to four receivers. It features built-in AES-128 encryption that protects your video from prying eyes while your signal stays clean when working within the 5 GHz frequency spectrum. A mini-USB cable is included for upgrading the unit’s firmware. Zero-Delay Wireless Video Transmit uncompressed 1080p60 video to receivers up to 500′ away with less than 1 ms of delay. Bolt Compatibility Ace 500 transmitters are compatible with all Bolt 500, LT, and XT receivers, as well as integrated wireless SmallHD Bolt monitors. Reliability Built with the same reliability and performance as the Bolt, Ace 500 ensures you have a continuous video feed when you need it most. Receivers Send video from the transmitter to up to four receivers within a 500′ line of sight. Mounting Options The Ace 500 transmitter includes one 1/4-20″ and two 4-40″ mounting holes. Power Options The Ace 500 is powered by using a separately available battery or DC power source using the included 2.1mm barrel to D-Tap cable, or by separately available Sony L-Series, BP-U, BP-9, or Canon LP-E6 battery plates attached directly to your transmitter. UPC: 818264024751 Teradek Ace 500 HDMI Wireless Video Receiver With the Teradek Ace 500 HDMI Wireless Video Receiver you’ll receive visually lossless, uncompressed 1080p60 signals from an Ace 500 transmitter with <1 ms latency up to a 500′ line of sight. The Ace 500 is compatible with existing Bolt systems such as the Bolt 500, XT, and LT, as well as SmallHD monitors with integrated Bolt transmitters. The Ace 500 features an HDMI type A output, and a standard HDMI cable is included so you can plug in right out of the box. Power is provided using the included 2.1mm DC barrel power adapter, or a separately available Sony L-Series, BP-U, BP-9, or Canon LP-E6 battery mount can be purchased. The receiver unit can be secured to a mount or stand via built-in 1/4″-20 or 4-40 holes. The receiver can share the transmitter signal with up to three other receivers. It features built-in AES-128 encryption that protects your video from prying eyes while your signal stays clean when working within the 5 GHz frequency spectrum. A mini-USB cable is included for upgrading the unit’s firmware. Zero-Delay Wireless Video Transmit uncompressed 1080p60 video to receivers up to 500′ away with less than 1 ms of delay. Bolt Compatibility Ace 500 receivers are compatible with all Bolt 500, LT, and XT transmitters, as well as integrated wireless SmallHD Bolt monitors. Reliability Built with the same reliability and performance as the Bolt, Ace 500 ensures you have a continuous video feed when you need it most. Receivers Send video from the transmitter to up to four receivers within a 500′ line of sight. Mounting Options The Ace 500 receiver includes one 1/4-20″ and two 4-40″ mounting holes. Power Options The Ace 500 is powered by the included 2.1mm DC barrel power supply or via separately available Sony L-Series, BP-U, BP-9, or Canon LP-E6 battery plates attached directly to your receiver.
