Wooden Camera – UVF Mount (ARRI Rosette) 196500

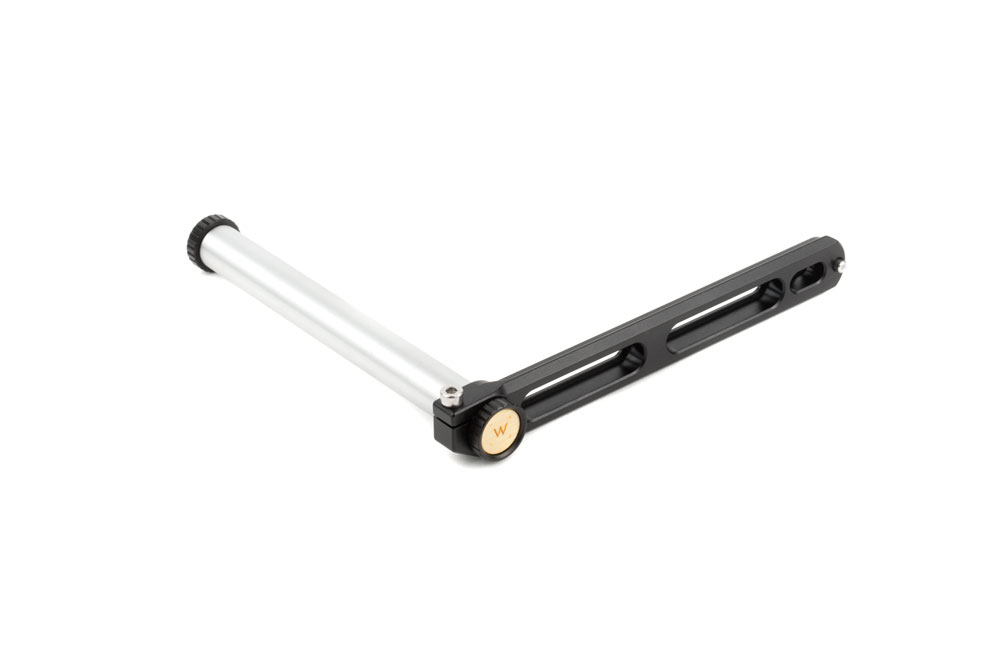

IN STOCK Complete purchase by 3pm CST and order will ship same business day. UVF Mount (ARRI Rosette) accepts EVFs or LCDs that utilize an ARRI standard rosette for attachment such as the Zacuto Gratical and F&V SpectraHD 4 EVF. Three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF Sled. Safety pin prevents accidental removal. UVF Sled can attach directly to any NATO-style rail. NATO Arm length approximately 5″ The included 15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to center. Can attach directly to RED Dragon/Epic/Scarlet and AJA CION. Can also attach to other cameras via Wooden Camera cages and cheeseplates. Includes: (2) 1/4-20 x 3/8″ socket cap screws (1) M6 x flat head socket screw Specifications: Weight: 320g (0.7 lbs) Dimensions: 206.8 x 158.8 x 60.9 mm (8.1 x 6.3 x 2.4 in) UVF Mount Mount (ARRI Rosette) Instructions
